TRAMES Unique are machines for measuring product dimensions that are fully tailored to the client’s needs.

If you cannot find a suitable measuring machine, system or device on the market, we design and manufacture the TRAMES Unique measuring machine based on 30 years of experience in metrology.
It can be a stand-alone device or a unit that is part of the production line or other devices.

  • Home
  • Our products
  • TRAMES Unique

What do TRAMES Unique systems offer?

1.

Customized measuring systems

TRAMES Unique are fully customized measuring systems which present solutions for complex metrology challenges in all industrial sectors.
2.

Stand-alone and In Line solutions

We can develop stand-alone, stationary measuring devices, as well as In Line solutions with a complete adaption to the existing industrial process.
3.

Automation adjusted to customer needs

The degree of automation is customized to the requirements, the process and the operating environment.
4.

Support and care for the device

We provide support and care for the device during the entire operating cycle (calibrations, service, customer support, IQ, OQ).

TRAMES Unique enables:

  • Measurement of dimensions in 1D, 2D and 3D space
  • Measurement using contact and non-contact sensors
  • Different levels of automation and metrological capabilities
  • A wide range of upgrades
  • Operation in the most demanding production conditions

Examples of TRAMES systems

Optical measuring systems

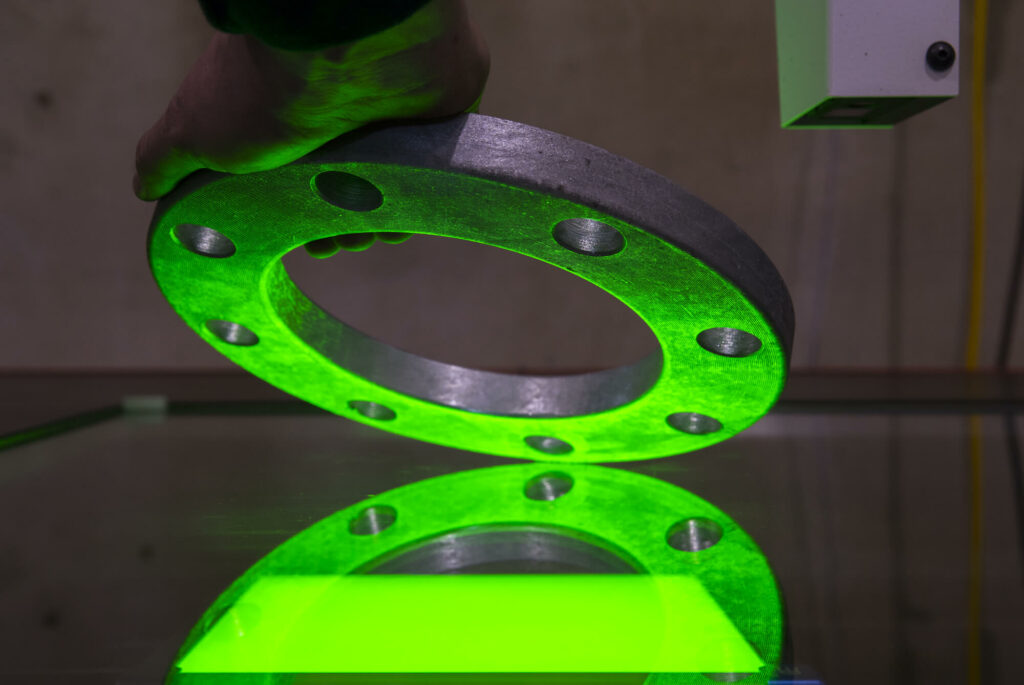

Measuring machines for non-contact optical measuring with fully customized metrological characteristics.

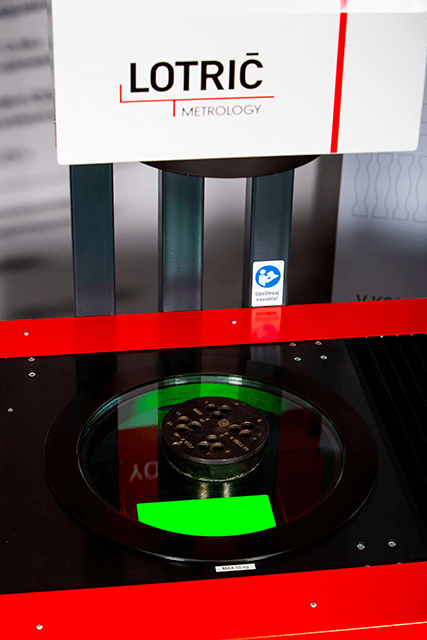

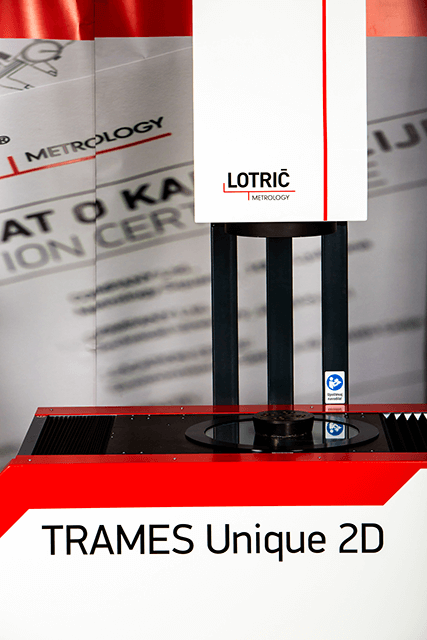

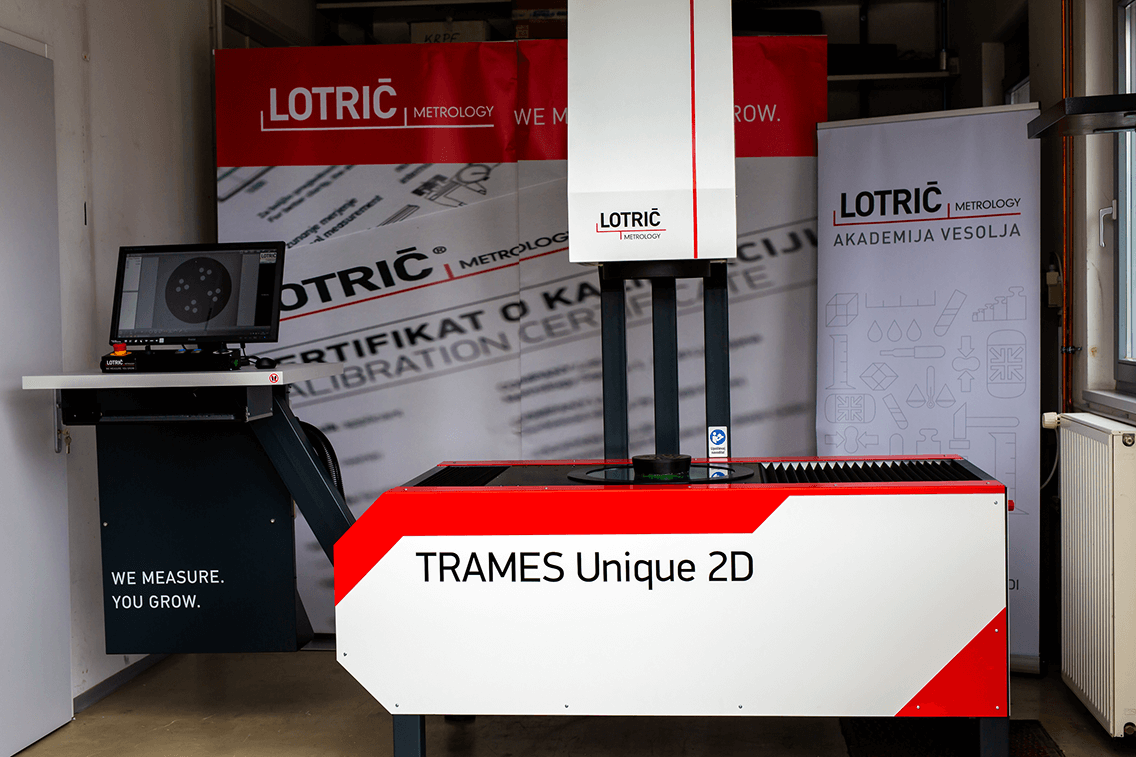

TRAMES Unique 2D is an optical measuring system which is customized for work in an industrial environment to measure large-mass aluminium extrusion tools. An automated measuring platform enables easier installation and manipulation.

General features

  • Examples of measured objects: round hole, six, angle, tube, specific profiles, squares…
  • Measuring the roundness of round shapes
  • Size of measured objects / nests : ø5 mm – ø200 mm
  • External dimensions of tools : ø50 mm – ø500 mm (Not measured), Height up to 150 mm.
  • Max tool mass: 50 kg.
  • Location of the device: Tool shop, industry hall

Construction and measuring platform

  • Welded rigid frame supported by levelling feet
  • Longitudinally adjustable position of the measuring platform
  • Adaptation of the measuring platform for the installation of samples by lift.
  • Rotation of measuring platform.
  • The design of the structure is adapted to use in industry.
  • Automation: Motorized movement of the measuring platform in the Y direction, motorized rotation of the measuring platform.

Measuring system

  • Optical (Machine vision) system
  • Magnification: 0.059x
  • Best accuracy: 0.008 mm (Optimal conditions)
  • Field of view: 221 mm x 191 mm
  • Field depth: 200+ mm.
  • Illumination area of Back light: 220 mm x 220 mm.

Software

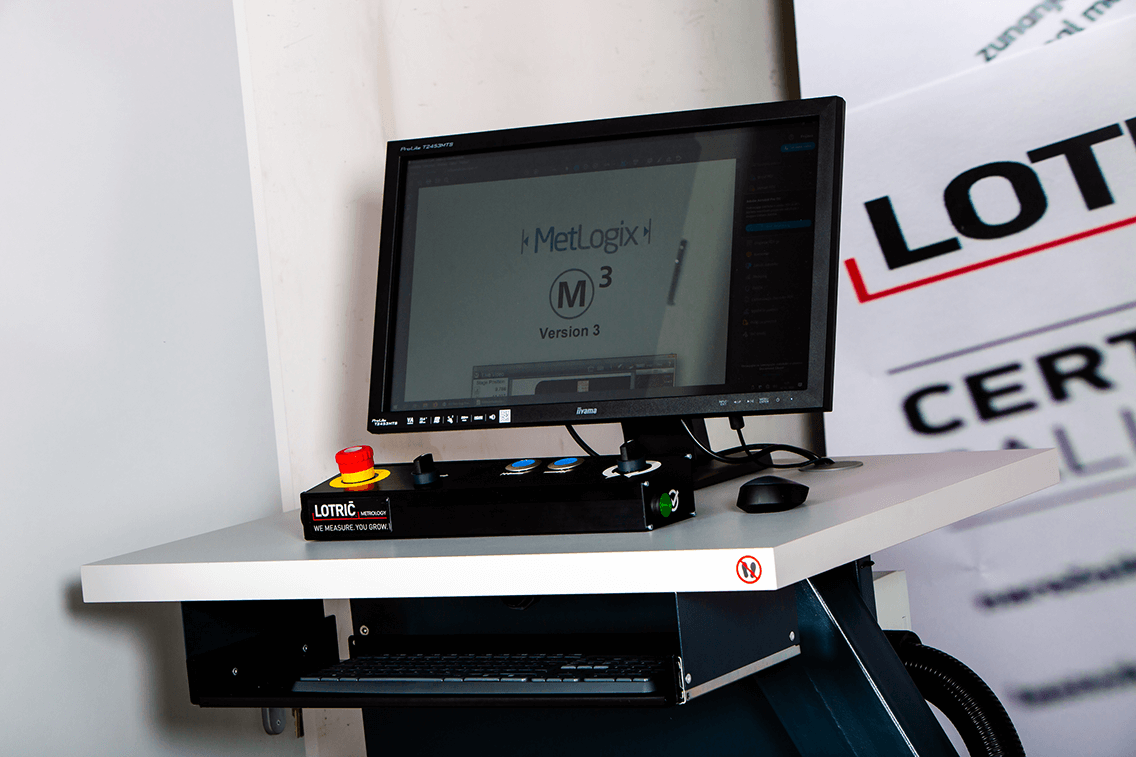

  • Machine Vision Software M3
  • Automatic edge detection
  • Automatic shape detection
  • Automatic focus
  • Entering tolerances and other data.
  • Programming measuring protocols for every different tool.
  • Alarming

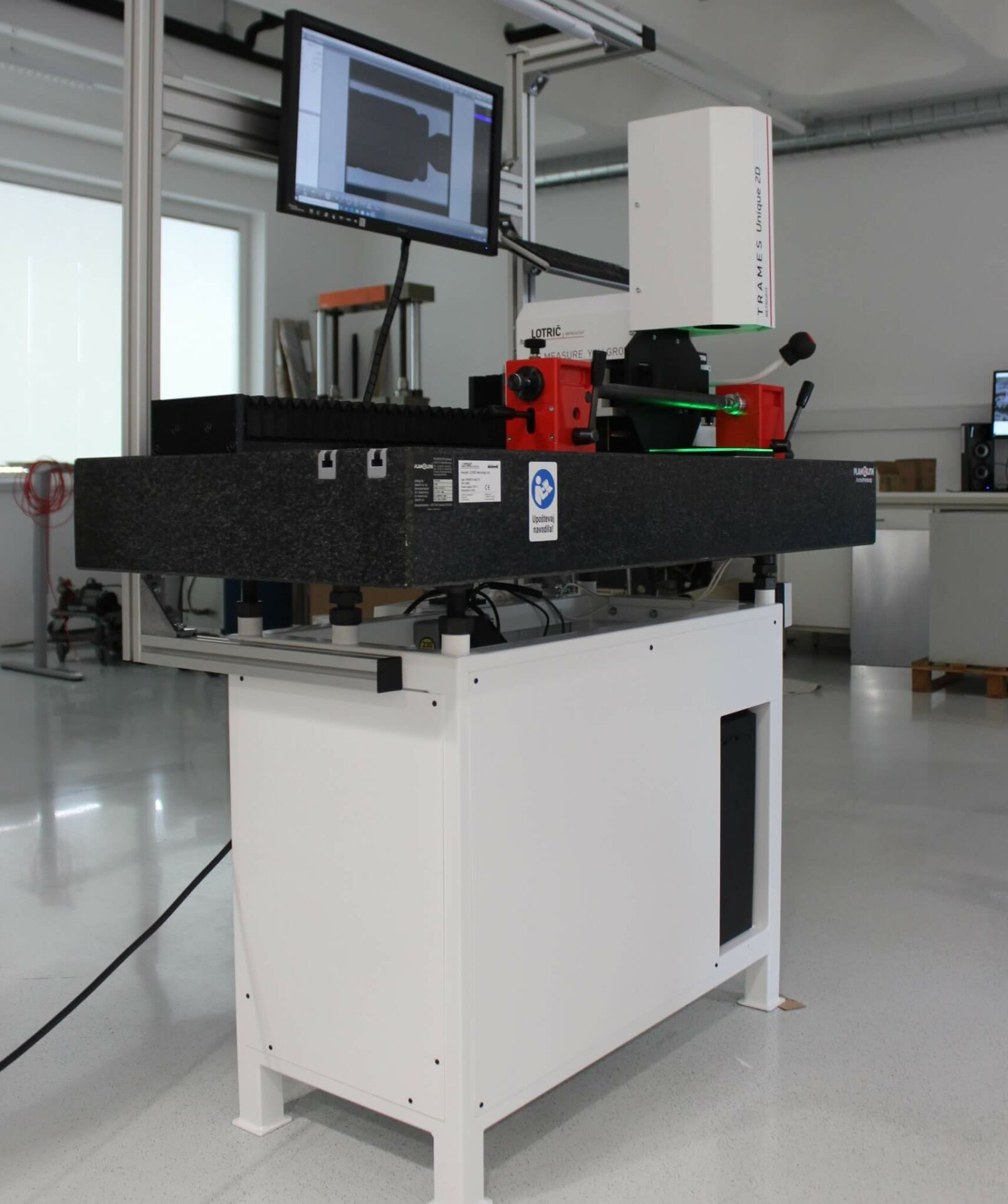

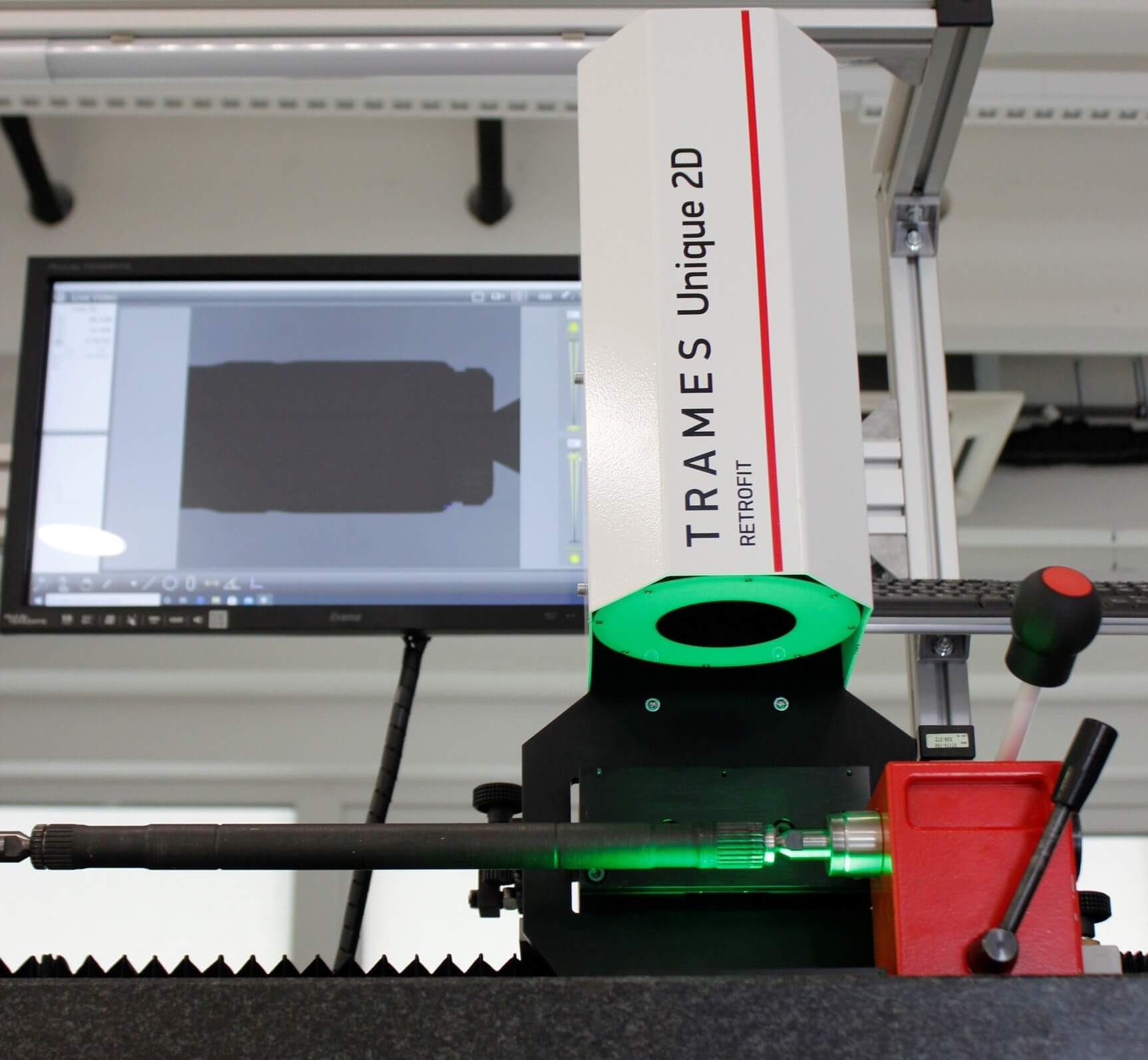

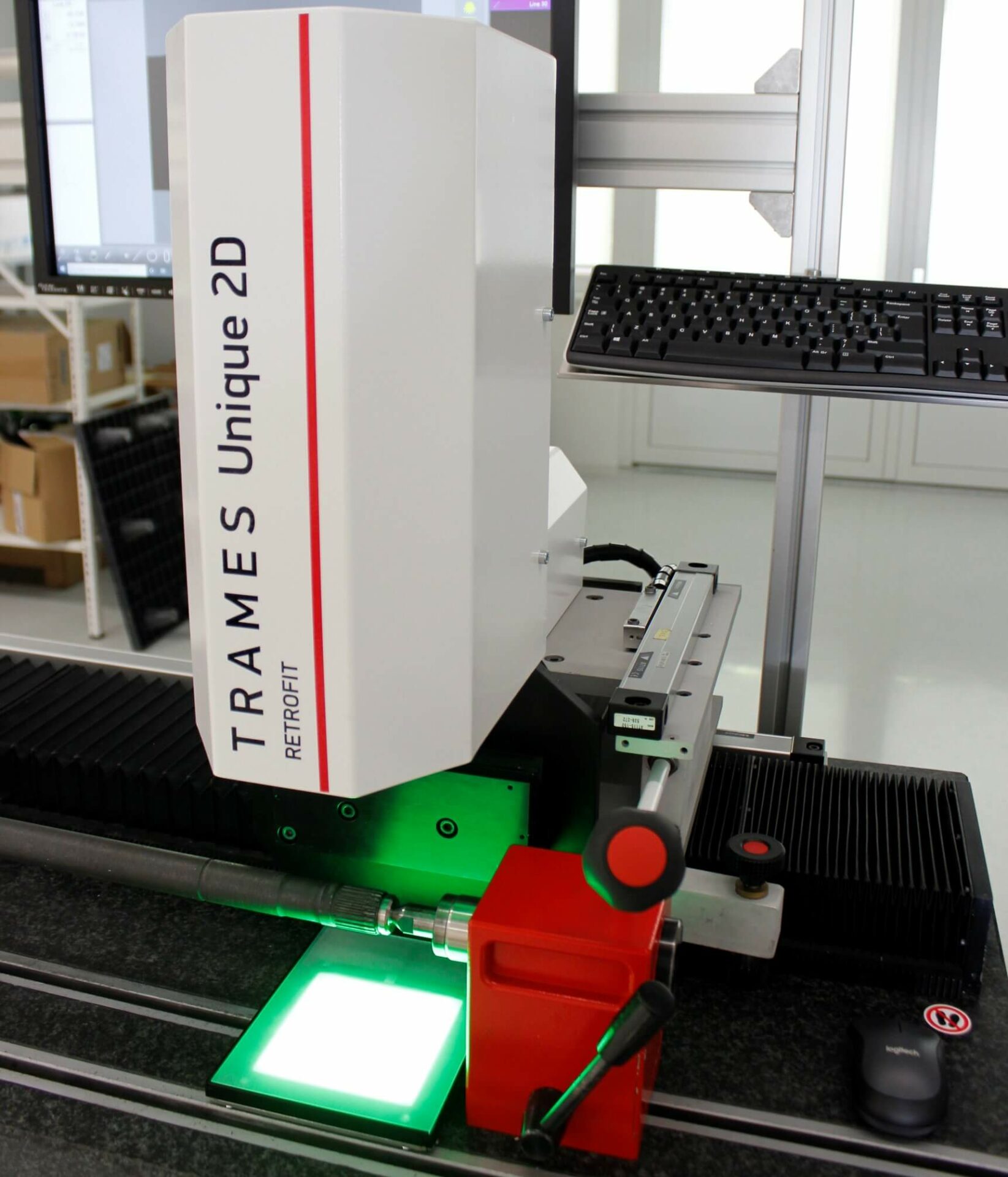

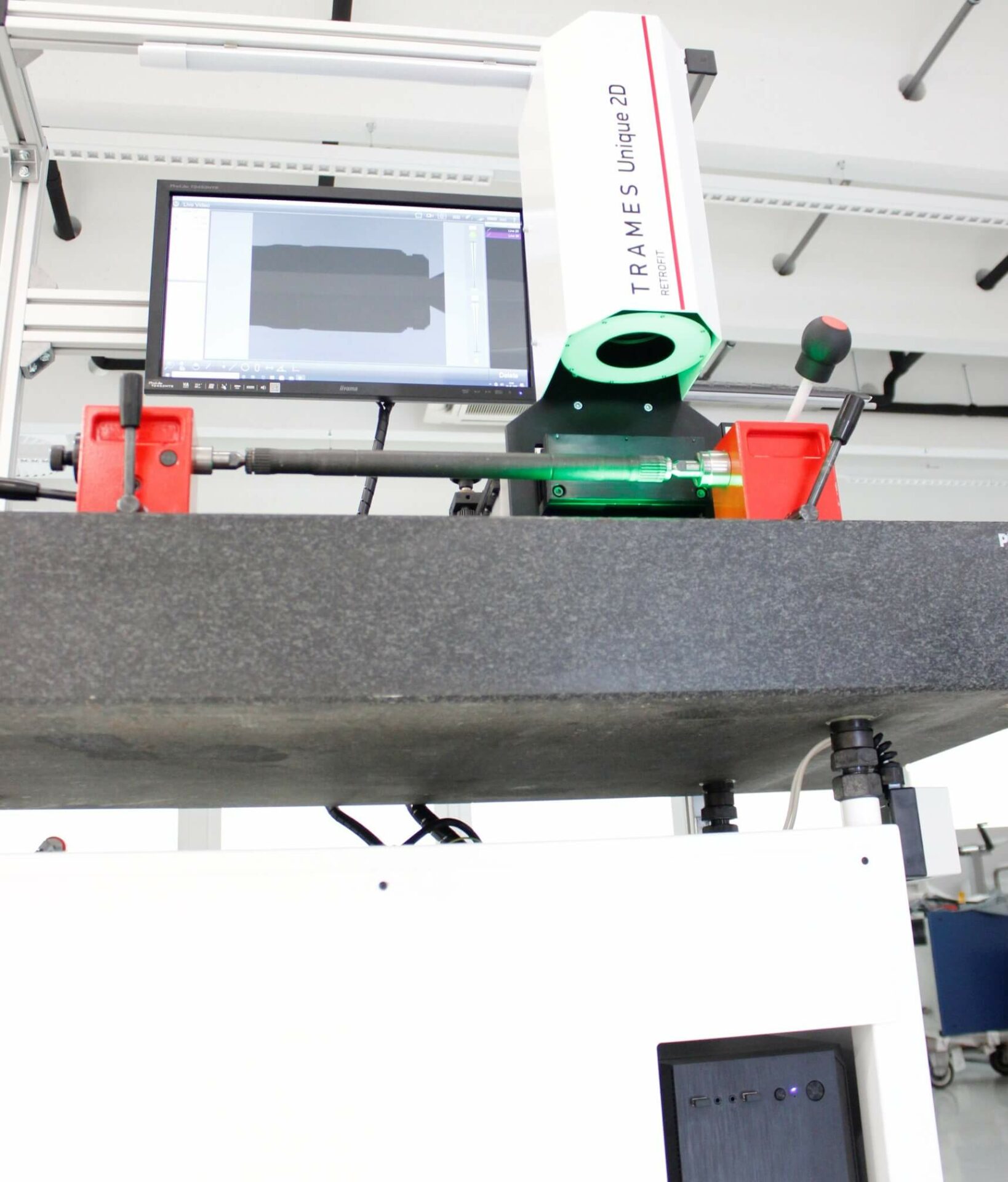

2D optical measuring device is customized to measure the dimensions of automotive drive shafts. It is intended for initial, intermediate and final product control. The optical measuring system is customized to different surface conditions of the products. The software allows the results to be processed according to automotive standards. The device is installed inside the production.

Contact measuring systems

Development of unique mechanical probes for measuring products during or after the production process.

Laser measuring systems

Laser scanning or measurement of products on stationary measuring machines as well as on production lines or in laboratories.

Combined measuring systems

Use of various measuring principles for achieving integrity and wider capabilities of the system (e.g. 2D optical measuring + 1D laser measuring + mass measuring).

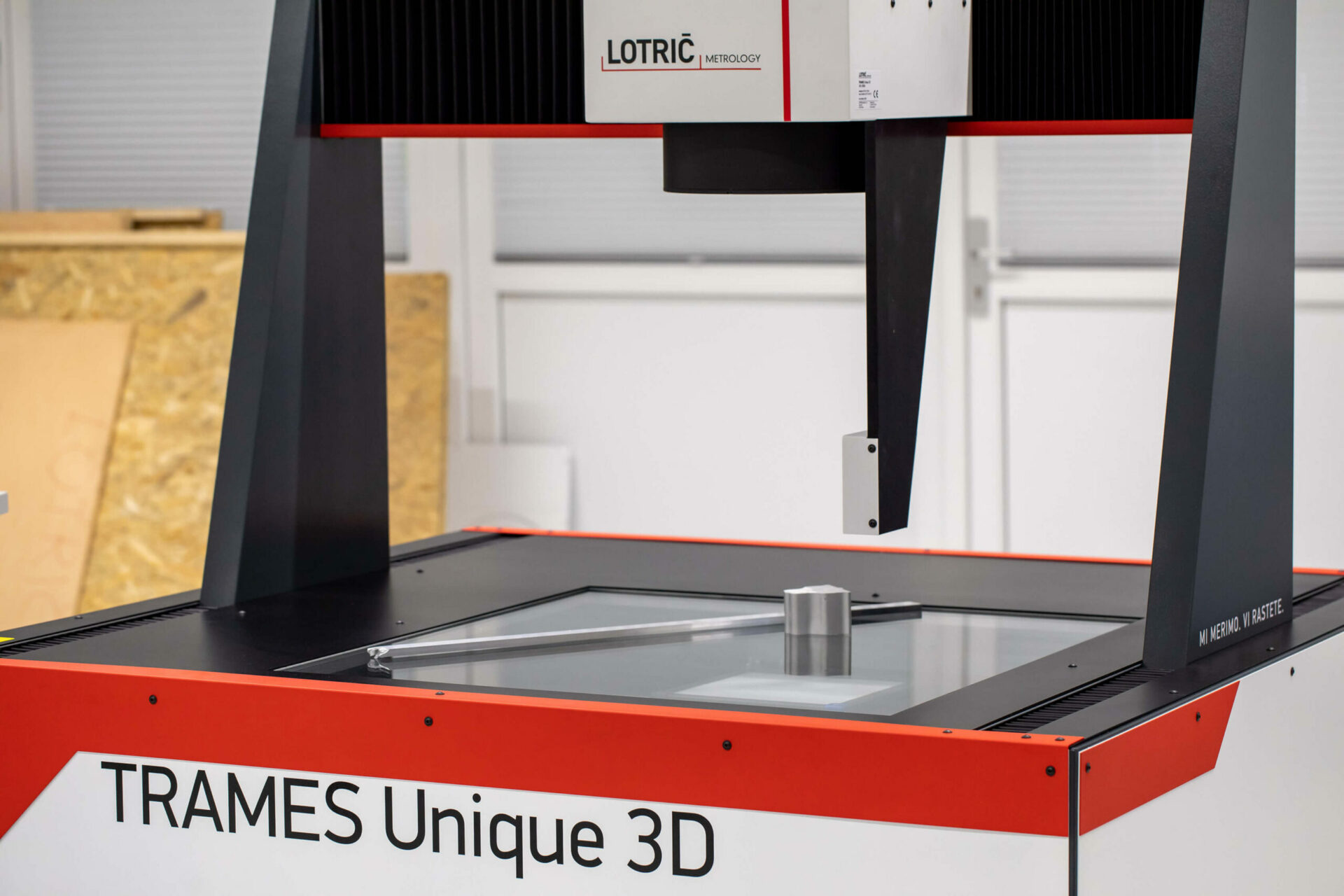

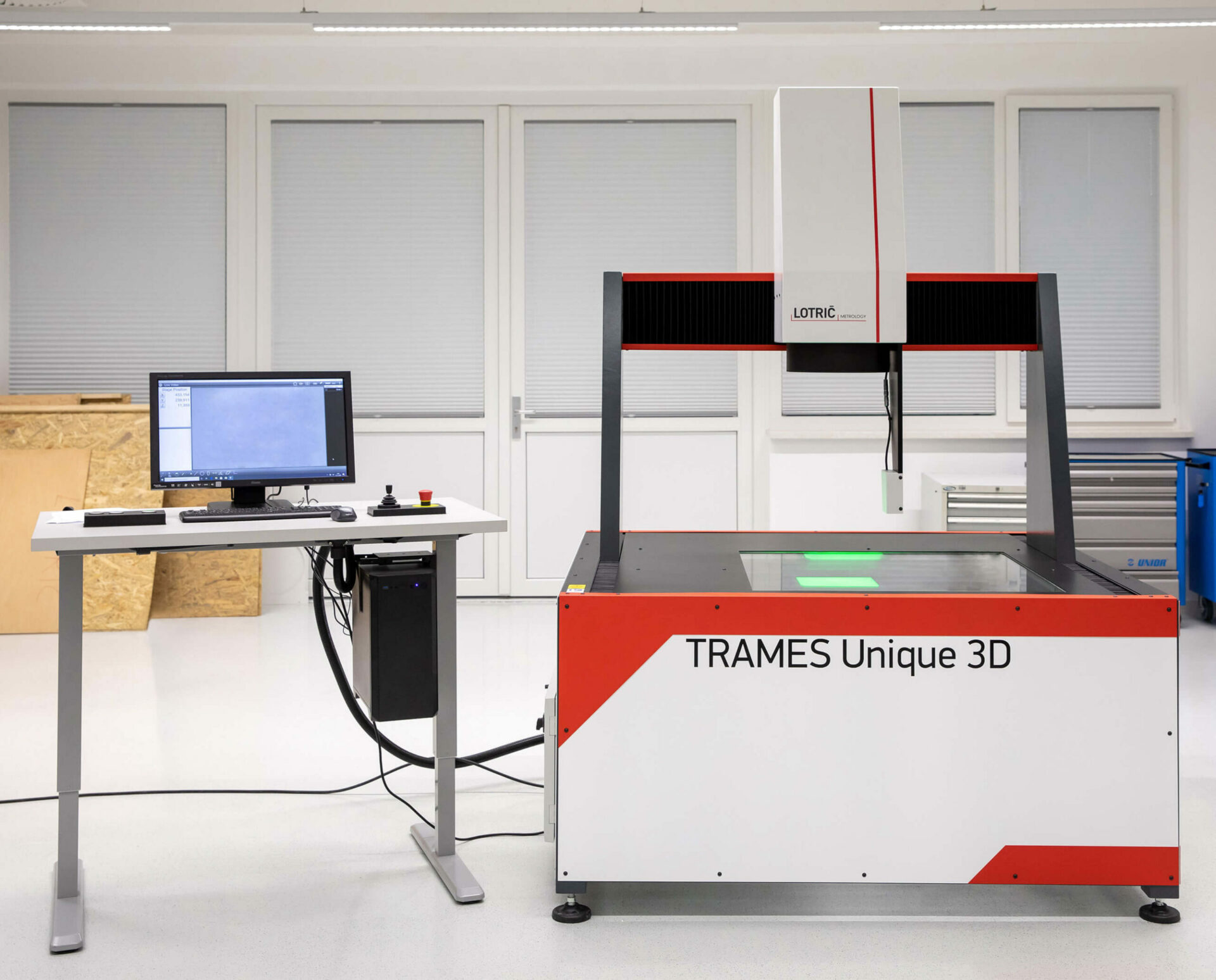

Combined measuring machine for measuring the dimensions of welds in the range of 800 x 800 x 100 mm. It is customized to work in a harsh industrial environment. The customized glass platform is scratch and impact resistant. The software is user-friendly and does not require experience in the field of measuring machines.

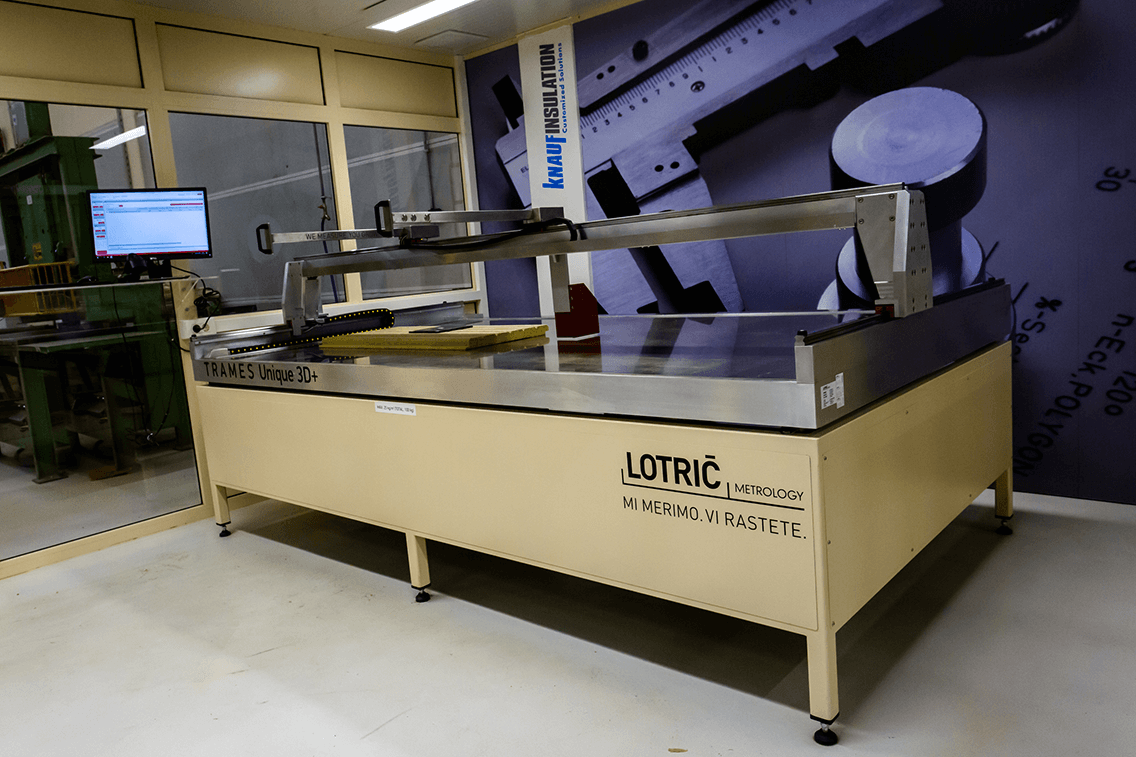

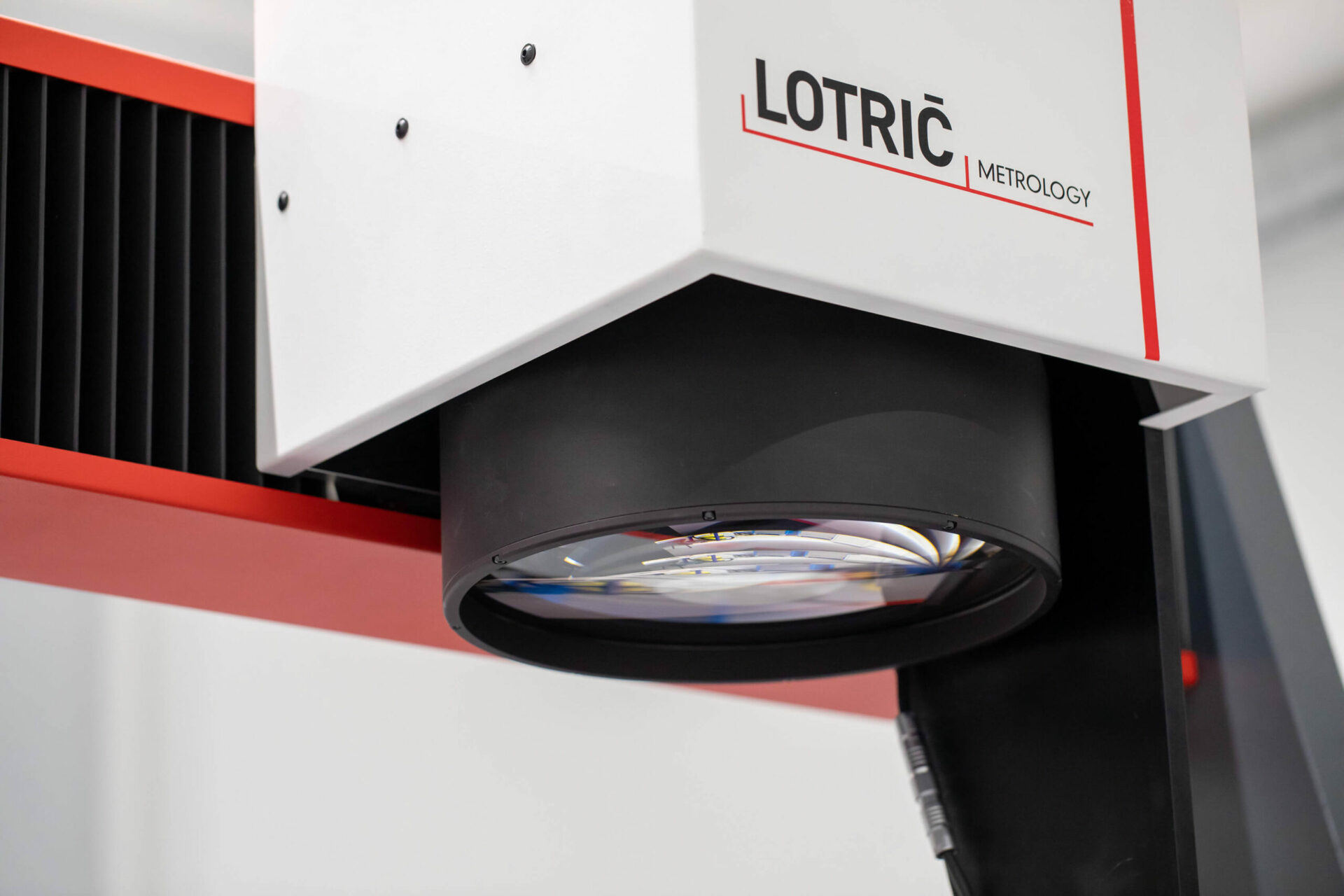

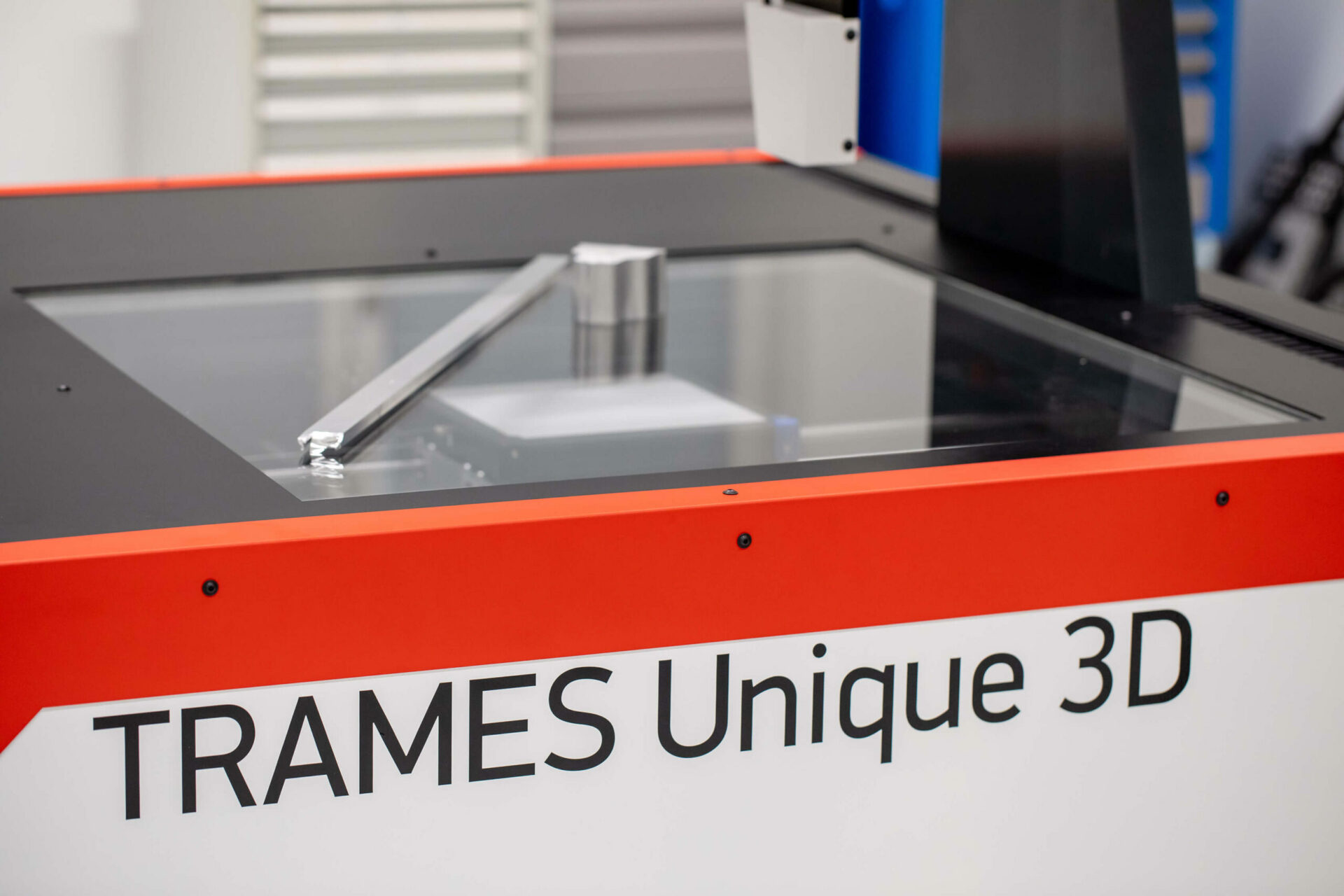

TRAMES Unique 3D device

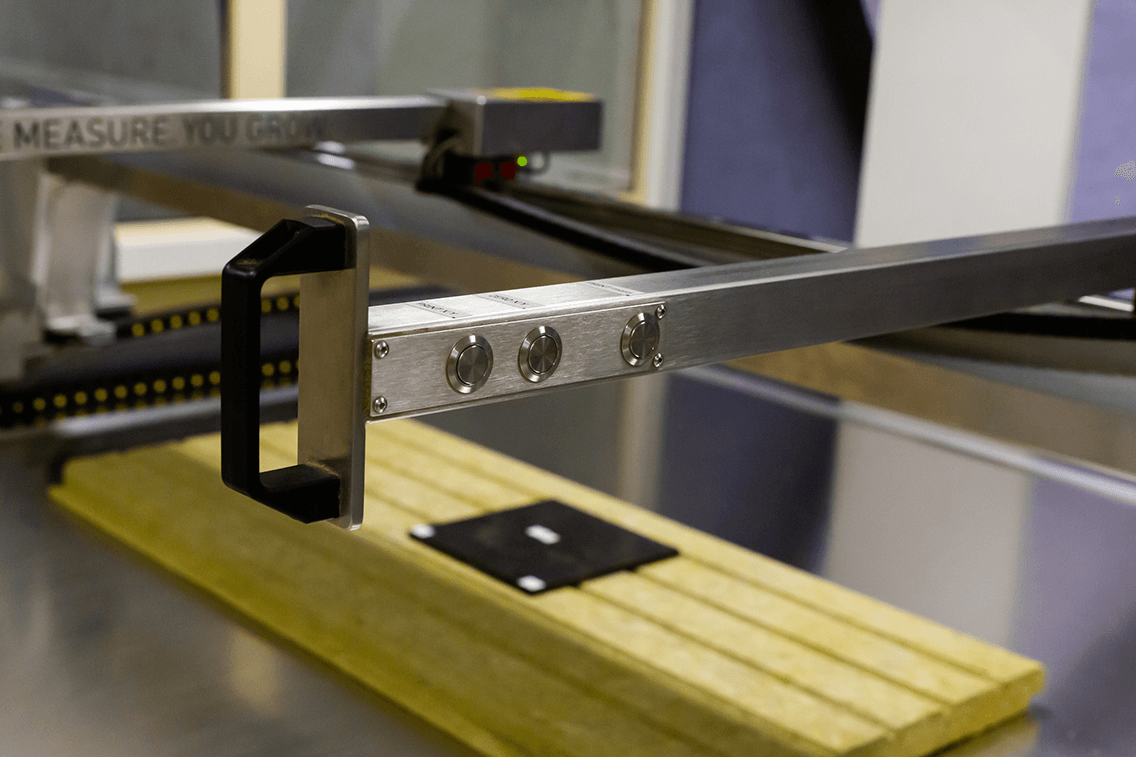

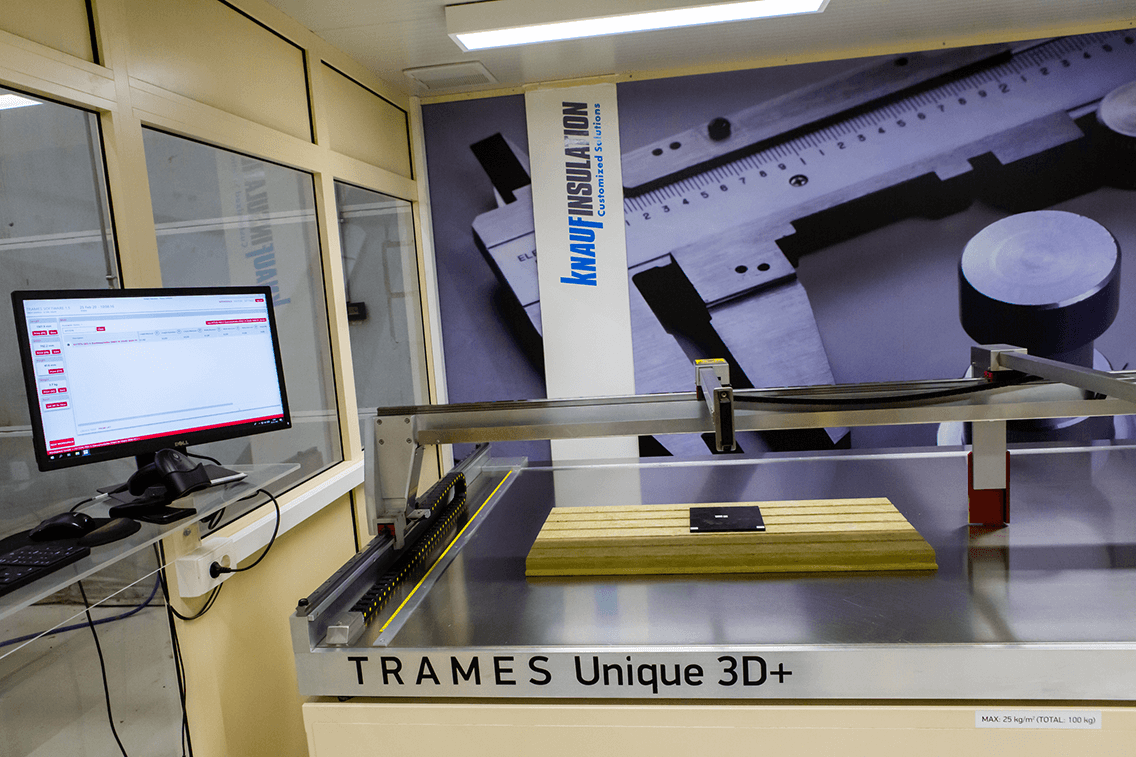

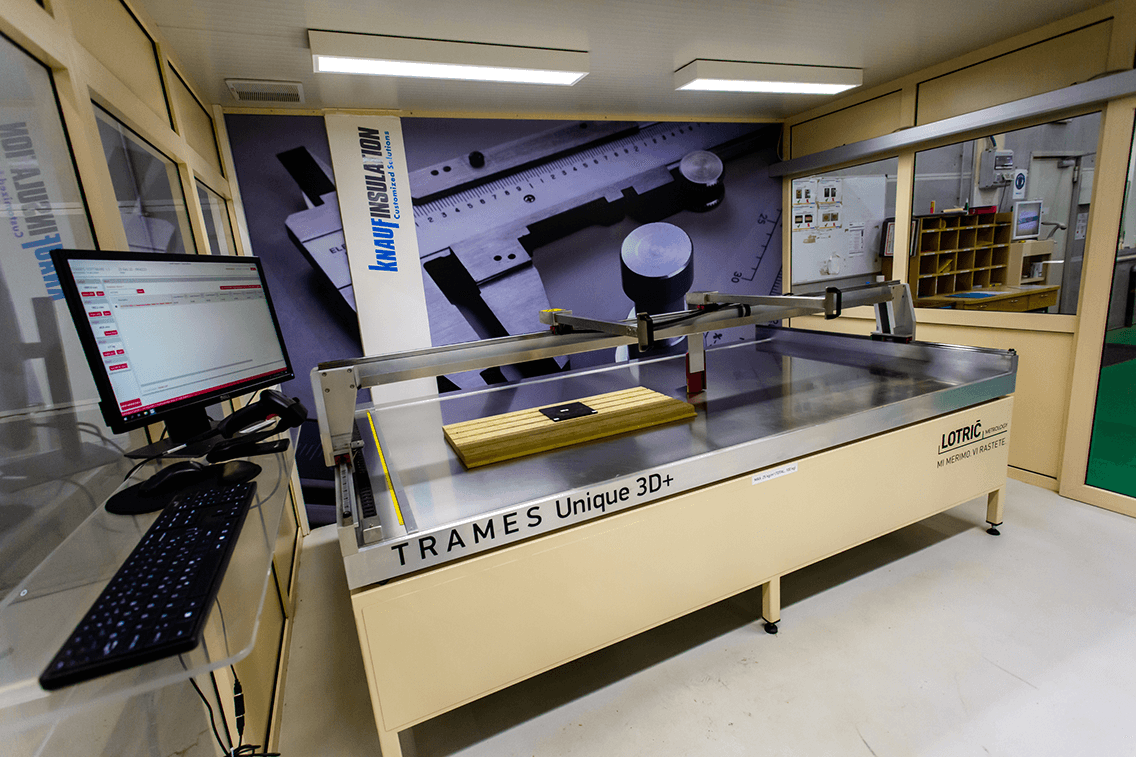

TRAMES Unique 3D + is a customized solution for measuring the dimensions, weight and density of soft materials.

Measuring area:

X: 0 – 1500 mm,
Y: 0 – 650 mm,
Z: 0 – 250 mm.
Weight: 0 – 100 kg.

This product is manufactured by an organization that has an ISO 9001 quality management system certified by Bureau Veritas Certification.

Quality system approval certificate ISO 9001
