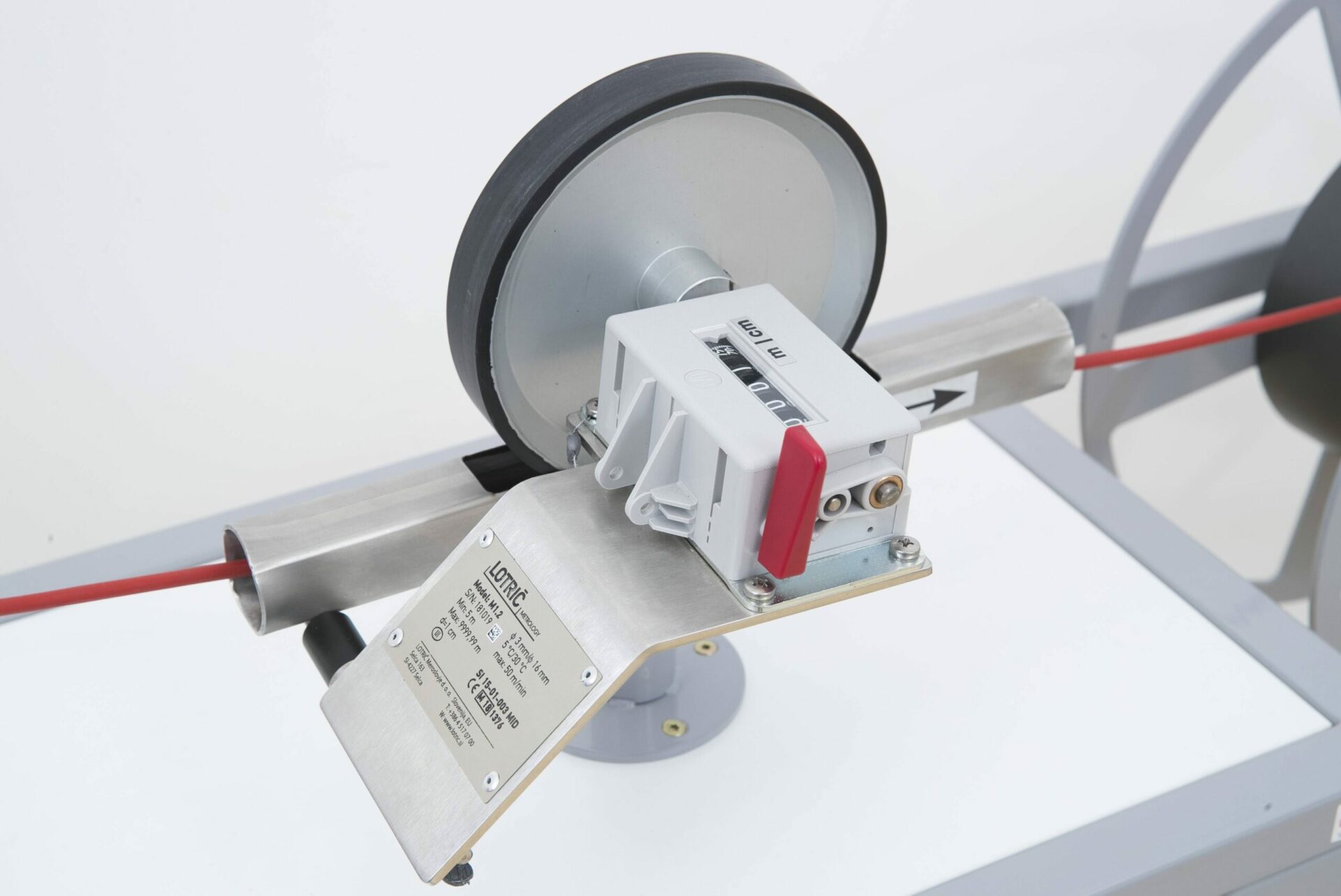

Length of wire and cable measuring device

The length of wire and cable measuring device and other products made of different materials can be used as a legal use measuring instrument in the European Union.

Depending on the customer’s requirements, the characteristics of the measuring device can be adjusted, and it also offers the possibility of installation on the production line.

  • Home
  • Our products
  • Length of wire and cable measuring device

Different versions of measuring device allows:

measuring in the range up to 9999.9 meters,

measurement of cables with a thickness of 3 to 50 millimeters,

  • M1 – for measuring thickness from 3 to 16 mm,
  • M2 – for measuring thickness from 5 to 50 mm,

meter resolution 1 centimeter,

measurement accuracy +/- 0.5% for lengths from 5 meters onwards.

The measuring device is in accordance with the European MID directive (EC certificate, number SI 15-01-003 MID, issued by a notified body - the Office of the Republic of Slovenia for Metrology with code 13776). The measuring device can be used as a legal use measuring instrument in the European Union. We can also issue you an accredited calibration certificate.

Advantages of measuring devices:

1.

the possibility of measuring the lengths of different materials

2.

housing made of stainless steel

3.

adjustment of the device according to customer requirements

4.

possibility of installation on the production line

Length of wire and cable measuring device

Sign up for a free demonstration of various measuring devices:

  • M1 – for measuring thickness from 3 to 16 mm,
  • M2 – for measuring thickness from 5 to 50 mm,
  • Universal measuring table.

This product is manufactured by an organization that has an ISO 9001 quality management system certified by Bureau Veritas Certification.

Quality system approval certificate ISO 9001

SIGN UP FOR A FREE DEMONSTRATION

Length of wire and cable measuring device

The measuring device is in accordance with European Directive MID (EC certificate No. SI 15-01-003 MID).

It can be used as a legal measuring device in the European Union.

Possibility of accredited calibration.
